Precision balances : PLS 20000-1F

Application Headline

Dosing of the necessary additives for the enamel slip

Application Description

Dosing of the necessary additives for the enamel slip. An important process for the correct composition of the admixtures

Additional information

Dosing of the necessary additives for the enamel slip. An important process for the correct composition of the admixtures.

Functions

Accessories

Price

€ 710.-

Note :

Net, ex works, excluding VAT

Article codes, product groups & Status information

Model article-code	PLS 20000-1F
Model-Serie	PLS
Assortment	KERN
Product Type	Laboratory balances
Product group	Precision balances
Product usage type	Main article
EAN code (Model)	4045761243354
Predecessor Model	PLS 20000-1F-2020a
Planned start date	2021-1HJ
Sales Clearance	yes
Customs tariff number	84238129
Article Status	active
PGS-ID	PGS-1-1-3
CE Label	yes
Country of Origin	CN

Technical data - Primary

Weighing capacity	20000 g
Readability	0.1 g
Repeatability	0.1 g
Linearity	± 0.4 g
Minimum piece weight	5 g
Weighing surface (d)	200×175 mm

Technical data - Construction

Dimension housing (W×D×H)	210×340×120 mm
Bubble Level	yes
Material weighing plate	stainless steel
Revolving screw feet	yes
Casing material	plastic
Dimensions of weighing plate (W×D)	200×175 mm
Weighing surface (d)	200×175 mm

Technical data - Display

Display height	15 mm
Backlight	yes

Technical data - Power supply

Mains adapter/adapter included	AUS;CH;EURO;UK;US
Input Voltage	100 V - 240 V, 50 / 60 Hz

Technical data - Measuring system

Calibration method	Adjusting with external weight
Linearity	± 0.4 g
Minimum weight (USP)	200 g
Readability	0.1 g
Recommended adjusting weight	20 kg (F1)
Repeatability	0.1 g
Stabilisation time under laboratory conditions	3 s
Warm up time	120 min
Carat - max capacity	100000 ct
Carat - readout	1 ct

Technical data - Environmental conditions

Maximum humidity	80 %
Maximum operating temperature	35 °C
Minimum ambient temperature	15 °C

Technical data - Packing & Shipping

Dimensions packaging (W×D×H)	450×320×300 mm
Gross weight	4.4 kg
Net weight	3.2 kg
Shipping method	Parcel service
Packaging component - by weight - paper	165 g
Packaging component - by weight - cardboard	800 g
Packaging component - by weight - plastics	30 g
Packaging component - by weight - foam	100 g
Delivery time	1 d

Technical data - Counting data

Counting resolution	40000
Mininum piece weight at piece counting (Laboratory)	500 mg
Minimum piece weight	5 g

Text data

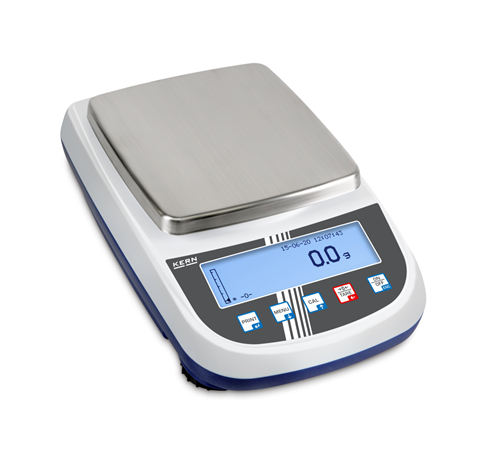

Headline	Precision Balance KERN PLS 20000-1F
Slogan	High-quality precision scale with comfortable graphic display and enormous weighing range
Description	Convenient recipe-weighing with the recipe database, up to 99 recipes can be stored, each with up to 20 recipe ingredients with name and target value Internal memory for complete recipes with name and target value of the recipe ingredients. User guidance through display Rapid and efficient operation thanks to the graphics display Dosage aid: High stability mode and other filter settings can be selected Simple, clear user interface on the display in the following languages: DE, EN, FR, IT, ES, PT Adjusting program CAL for quick setting of the balance accuracy using an external test weight at an additional price, see test weights Protective working cover included with delivery

Function elements

Density calculation	yes
Pre Tare	yes
Percent weighing	yes
Formulation function level	Rez B (Net-total, memory with plain text designations + setpoint, also for printout)
Standby function	yes
Animal Weighing	yes
Time & Date	yes
Counting	yes
Tare Function	manual (multi)

Responsible Persons

Product manager

Timo Günther

Prices & Discounts

List price	710.00 €
Warranty	36 mon

Optional Services

DAkkS Calibration

963-128

PLS 20000-1F - Precision balances
