Counting production pieces on a transport line based on weight
Metal shelves manufacturer
IFS 60K0.5DL
Counting scales
Model
IFS 60K0.5DL
Weighing capacity
30 kg; 60 kg
Readability
0.0005 kg; 0.001 kg
Counting resolution
60000
Price
€ 760.-
Calibration
DAkkS calibrations are also possible on site
Counting production pieces on a transport line based on weight
View all other applicationsApplication Description
Grinding of metal parts can be done in a conveyor line. After a set number of pieces, which is determined by weight, the machine stops. The workpieces can be removed for shipping. A simple and efficient method for counting the parts.
Additional information
Grinding is one of the most common types of processing of metal surfaces. The aim is to make the surface flat, smooth, matt or highly gloss. The processing of individual metal parts can take place in a conveyor line. After a set number of pieces has been produced, which is determined based on the weight, the machine stops. The workpieces can be removed for shipping. A simple and efficient method for counting the parts.
Suitable Accessories
963-129
DAkkS calibration certificate 963-129
Price :
161 €
All prices plus VAT and shipping costs valid until 21.09.2026 *
For expert advice, please contact:
Application Headline
Counting production pieces on a transport line based on weight
Application Description
Grinding of metal parts can be done in a conveyor line. After a set number of pieces, which is determined by weight, the machine stops. The workpieces can be removed for shipping. A simple and efficient method for counting the parts.
Additional information
Grinding is one of the most common types of processing of metal surfaces. The aim is to make the surface flat, smooth, matt or highly gloss. The processing of individual metal parts can take place in a conveyor line. After a set number of pieces has been produced, which is determined based on the weight, the machine stops. The workpieces can be removed for shipping. A simple and efficient method for counting the parts.
| Price |
€ 760.-
|
Note :
Net, ex works, excluding VAT| Model article-code |
IFS 60K0.5DL
|
| Model-Serie |
IFS
|
| Assortment |
KERN
|
| Product Type |
Industrial scales
|
| Product group |
Counting scales
|
| Product usage type |
Main article
|
| EAN code (Model) |
4045761111936
|
| Planned start date |
2010-1HJ
|
| Sales Clearance |
yes
|
| Customs tariff number |
84238220
|
| Article Status |
active
|
| PGS-ID |
PGS-1-3-1
|
| CE Label |
yes
|
| Country of Origin |
CN
|
| Weighing capacity |
30 kg; 60 kg
|
| Readability |
0.0005 kg; 0.001 kg
|
| Counting resolution |
60000
|
| Minimum piece weight |
10 g
|
| Net weight |
12 kg
|
| Platform size |
500×400 mm
|
| Material weighing plate |
stainless steel
|
| Bubble Level |
yes
|
| Revolving screw feet |
yes
|
| Weighing surface (d) |
500×400 mm
|
| Dimensions of weighing plate (W×D) |
500×400 mm
|
| IP protection indicator |
no IP protection
|
| IP protection platform |
no IP protection
|
| IP protection load cell |
IP65
|
| Display height |
16.5 mm
|
| Backlight |
yes
|
| Mains adapter/adapter included |
CH;EURO;UK;US
|
| Charging time |
12 h
|
| Input Voltage |
100-240V~ 50/60Hz 190mA
|
| Operating time (Backlight off) |
18 h
|
| Rechargeable battery |
Rchrg. battery optional (factory)
|
| Calibration method |
Adjusting with external weight
|
| Linearity |
± 0.003 kg; 0.006 kg
|
| Readability |
0.0005 kg; 0.001 kg
|
| Recommended adjusting weight |
50 kg (F2)
|
| Repeatability |
0.0005 kg; 0.001 kg
|
| Resolution |
60.000, 60.000
|
| Stabilisation time under laboratory conditions |
2 s
|
| Tare range |
60 kg
|
| Warm up time |
120 min; 120 min
|
| Weighing system |
Strain gauge
|
| Weighing units |
kg
|
| Maximum humidity |
80 %
|
| Maximum operating temperature |
40 °C
|
| Minimum ambient temperature |
0 °C
|
| Minimum humidity |
0 %
|
| Dimensions packaging (W×D×H) |
930×545×210 mm
|
| Gross weight |
15 kg
|
| Net weight |
12 kg
|
| Shipping method |
Parcel service
|
| Packaging component - by weight - cardboard |
2.6 kg
|
| Delivery time |
1 d
|
| Counting resolution |
60000
|
| Mininum piece weight at piece counting (Laboratory) |
1 g
|
| Minimum piece weight |
10 g
|
| Headline |

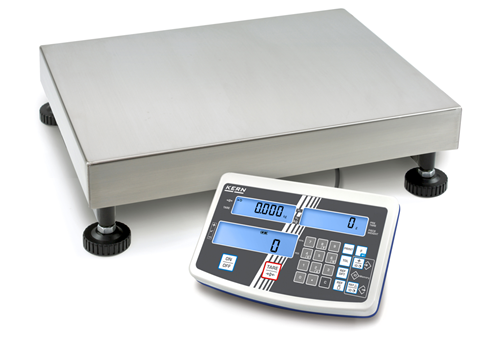

Counting Scale KERN IFS 60K0.5DL
|
| Slogan |
Industrial counting scale with convenient decimal keypad for easy data entry, counting resolution 60.000 points
|
| Description |
|
| Counting reference weight manually enterable |
yes
|
| Counting reference count manually enterable |
free
|
| Formulation function level |
Sum A
|
| Summing function |
yes
|
| Counting |
yes
|
| Tare Function |
manual (multi)
|
| Product manager |
Steffen Hofmann
|
| List price |
760.00 €
|
| Warranty |
36 mon
|
| DAkkS Calibration |
963-129
|
