Weight-based counting of small metal parts in goods receipt
Iron, tinplates and metal products exporters

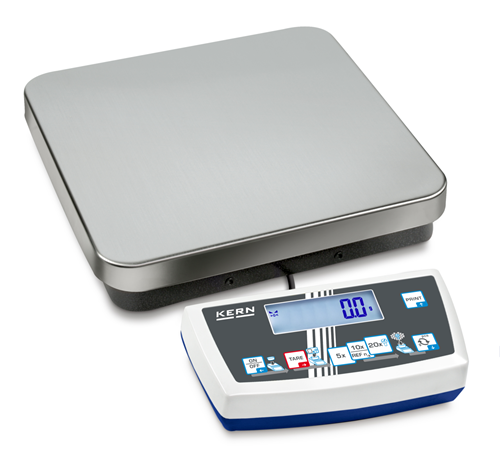

CDS 30K0.1
Counting scales
Model
CDS 30K0.1
Weighing capacity
30 kg
Readability
0.0001 kg
Counting resolution
300000
Price
€ 670.-
Calibration
DAkkS calibrations are also possible on site
Weight-based counting of small metal parts in goods receipt
View all other applicationsApplication Description
When receiving small metal parts such as nails, screws, staples, or turned parts, the quantity is determined by weight. Weight-based counting replaces time-consuming manual counting, minimizes errors, and enables fast and reliable inventory control. This accelerates processes and reduces personnel costs.
Additional information
Small metal parts are produced in large quantities, imported, and processed in a wide variety of industries. Accurate quantity tracking upon receipt of goods is crucial for warehousing, production planning, and inventory management. However, manually counting large quantities is inefficient and prone to errors. Determining the quantity using a reference weight offers an economical alternative: it ensures transparent incoming goods inspections, supports the inventory management system, and prevents stockouts or production delays. This guarantees efficient and cost-optimized material logistics.
Suitable Accessories
963-128
DAkkS calibration certificate 963-128
Price :
130 €
All prices plus VAT and shipping costs valid until 21.09.2026 *
For expert advice, please contact:
Application Headline
Weight-based counting of small metal parts in goods receipt
Application Description
When receiving small metal parts such as nails, screws, staples, or turned parts, the quantity is determined by weight. Weight-based counting replaces time-consuming manual counting, minimizes errors, and enables fast and reliable inventory control. This accelerates processes and reduces personnel costs.
Additional information
Small metal parts are produced in large quantities, imported, and processed in a wide variety of industries. Accurate quantity tracking upon receipt of goods is crucial for warehousing, production planning, and inventory management. However, manually counting large quantities is inefficient and prone to errors. Determining the quantity using a reference weight offers an economical alternative: it ensures transparent incoming goods inspections, supports the inventory management system, and prevents stockouts or production delays. This guarantees efficient and cost-optimized material logistics.
| Price |
€ 670.-
|
Note :
Net, ex works, excluding VAT| Model article-code |
CDS 30K0.1
|
| Model-Serie |
CDS
|
| Assortment |
KERN
|
| Product Type |
Industrial scales
|
| Product group |
Counting scales
|
| Product usage type |
Main article
|
| EAN code (Model) |
4045761243910
|
| Predecessor Model |
CDS 30K0.1-2021a
|
| Planned start date |
2022-2HJ
|
| Sales Clearance |
yes
|
| Customs tariff number |
84238129
|
| Article Status |
active
|
| PGS-ID |
PGS-1-3-1
|
| CE Label |
yes
|
| Country of Origin |
DE
|
| Product line |
EF20
|
| Weighing capacity |
30 kg
|
| Readability |
0.0001 kg
|
| Counting resolution |
300000
|
| Minimum piece weight |
1 g
|
| Net weight |
7.5 kg
|
| Platform size |
308×318 mm
|
| Casing material |
plastic
|
| Dimension housing (W×D×H) |
225×115×60 mm
|
| Material weighing plate |
stainless steel
|
| Bubble Level |
yes
|
| Weighing surface (d) |
308×318 mm
|
| Dimensions of weighing plate (W×D) |
308×318 mm
|
| Display height |
21 mm
|
| Backlight |
yes
|
| Mains adapter/adapter included |
CH;EURO;UK;US
|
| Charging time |
8 h
|
| Input Voltage |
100 V - 240 V AC, 50 / 60 Hz
|
| Operating time (Backlight off) |
48 h
|
| Rechargeable battery |
Rchrg. battery optional - intern
|
| Calibration method |
Adjusting with external weight
|
| Linearity |
± 0.0005 kg
|
| Readability |
0.0001 kg
|
| Recommended adjusting weight |
30 kg (E2)
|
| Repeatability |
0.0002 kg
|
| Resolution |
300.000
|
| Stabilisation time under laboratory conditions |
3 s
|
| Warm up time |
120 min
|
| Weighing system |
Strain gauge
|
| Weighing units |
ct;dwt;ffa;g;kg;lb;mo;oz;ozt;tl (HK);tl (Singap, Malays);tl (Tw)
|
| Maximum humidity |
80 %
|
| Maximum operating temperature |
40 °C
|
| Minimum ambient temperature |
-10 °C
|
| Dimensions packaging (W×D×H) |
510×380×140 mm
|
| Gross weight |
10 kg
|
| Net weight |
8 kg
|
| Shipping method |
Parcel service
|
| Packaging component - by weight - cardboard |
2.3 kg
|
| Delivery time |
1 d
|
| Counting resolution |
300000
|
| Mininum piece weight at piece counting (Laboratory) |
100 mg
|
| Minimum piece weight |
1 g
|
| Headline |
IoT-Line Counting Scale KERN CDS 30K0.1
|
| Slogan |
Easy to use industrial counting scale for heavy loads, counting resolution 300.000 points, ideal for the diverse possibilities of Industry 4.0 applications
|
| Description |
|
| Counting reference weight manually enterable |
yes
|
| Counting reference count manually enterable |
5, 10, 20, 50, free
|
| Pre Tare |
yes
|
| Percent weighing |
yes
|
| Animal Weighing |
yes
|
| Counting |
yes
|
| Tare Function |
manual (multi)
|
| Product manager |
Steffen Hofmann
|
| List price |
670.00 €
|
| Warranty |
36 mon
|
| DAkkS Calibration |
963-128
|
