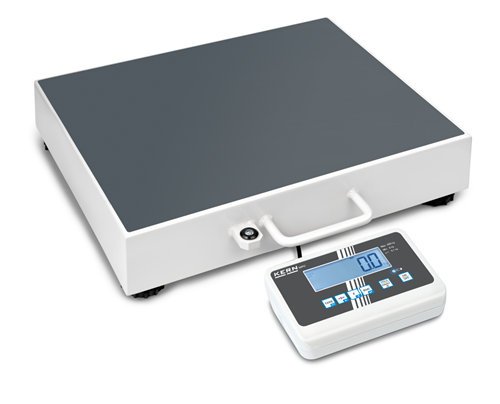

Personal scales : MPC 300K-1LM

Application Headline

Weight control of a patient

Application Description

Weight changes can indicate various serious diseases. (Heart failure, thyroid dysfunction, malignancies, etc. ) Regular weight checks with personal scales are therefore part of the routine in an internal medicine practice

Additional information

Body weight is an important indicator for recording a patient's condition and for reacting promptly to changes caused by the disease. Weight changes can indicate various serious diseases. (Heart failure, thyroid dysfunction, malignancies, etc. ) Regular weight checks with personal scales are therefore part of the routine in an internal medicine practice

Functions

Accessories

Price

€ 690.-

Note :

Net, ex works, excluding VAT

Article codes, product groups & Status information

Model article-code	MPC 300K-1LM
Model-Serie	MPC
Assortment	KERN
Product Type	Medical products
Product group	Personal scales
Product usage type	Main article
EAN code (Model)	4045761206649
Planned start date	2018-1HJ
Sales Clearance	yes
Customs tariff number	84231090
Article Status	active
PGS-ID	PGS-1-5-3
CE Label	yes
Country of Origin	CN
Verifications	yes

Technical data - Primary

Weighing capacity	300 kg
Readability	0.1 kg
Verification value (e)	0.1 kg

Technical data - Construction

Material weighing plate	plastic
Bubble Level	yes
Dimension completely mounted (W×D×H)	500×455×120 mm
Material casing	steel, lacquered

Technical data - Display

Display height

25 mm

Technical data - Power supply

Battery	6×1.5 V AA
Operating time	20 h
Mains adapter/adapter included	CH;EURO;UK
Charging time	12 h
Input Voltage	100 V - 240 V, 50 / 60 Hz
Operating time (Backlight off)	40 h
Rechargeable battery	Rchrg. battery optional - intern

Technical data - Measuring system

Calibration method	Adjusting with external weight
Linearity	± 0.1 kg
Readability	0.1 kg
Recommended adjusting weight	250 kg (M1)
Repeatability	0.1 kg
Weighing units	kg
Weighing system	Strain gauge

Technical data - Environmental conditions

Maximum humidity	80 %
Maximum operating temperature	40 °C
Minimum ambient temperature	-10 °C

Technical data - Packing & Shipping

Dimensions packaging (W×D×H)	940×555×215 mm
Gross weight	15 kg
Net weight	11 kg
Shipping method	Parcel service
Packaging component - by weight - cardboard	200 g
Packaging component - by weight - plastics	500 g
Packaging component - by weight - styrofoam	800 g
Delivery time	1 d

Technical data - Verification

Verification Value E	0.1 kg
Minimum load (Min)	2 kg
Verification by KERN possible	yes
Verification class	III
Medical approval 93/42/EWG	no
MPG class	1m
CND code	V0399
GMDN code	38211

Text data

Headline	Personal Floor Scale KERN MPC 300K-1LM
Slogan	Compact personal floor scale – with approval for professional medical use in medical diagnostics, verification optional
Description	Verification class III (verification is optional) Approved as a medical device according to regulation (EU) 2017/745 The bestseller for doctor’s surgeries, chemists and hospitals Robust design for daily use in a professional environment Easy and hygienic cleaning Secure and non-slip positioning with height-adjustable rubber feet Level indicator to level the balance precisely Version with [Max] = 300 kg and larger weighing plate. Specially suitable for weighing overweight patients who are in the obese category. Sturdy handle for easy transportation of the scale Flexible positioning of display device, e.g. free-standing or mounted to the wall. Wall mount for display device standard Large platform with non-slip and wear-resistant surface made of plastic, to provide a secure footing for patients High resolution readability: readability [d] can be increased by one decimal place for 5 sec. by the touch of a key BMI function to determine underweight/normal weight/surplus weight Hold function: While weighing patients that are unable to stand still, a mean average weight value is determined. This allows for sufficient time to attend to the patient, and then get a weight reading Parent-child function: the parent's weight is measured, and the scale is reset to zero via the button. Subsequently, the parent and baby are weighed together. The weight of the child will then show on the display. This is particularly practical for weighing infants, who can remain cradled in the arms of a parent during the weighing process GLP/ISO report, printout of weight value, BMI etc. with date and time. FLP/GMP-compliant print form in DE, EN, FR, only in combination with RS-232 interface cable KERN CFS-A01 + MPC-A01 and printer KERN YKB-01N Battery- or mains-powered, rechargeable battery operation optional Protective working cover included with delivery

Function elements

BMI calculation	yes
Pre Tare	yes
Animal Weighing	yes
Tare Function	manual (single & multi)

Responsible Persons

Product manager

Patrice Pfeffer

Prices & Discounts

List price	690.00 €
Warranty	36 mon

Optional Services

DAkkS Calibration	963-129
Verification	965-129

MPC 300K-1LM - Personal scales
