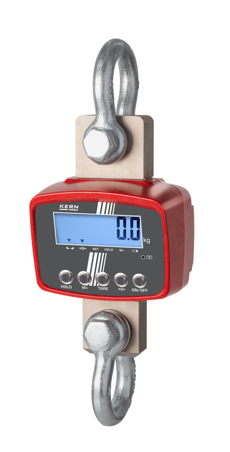

Crane scale : HFD 600K-1

Application Headline

Weighing firewood during loading

Application Description

A crane scale allows for the reliable weighing of firewood batches directly during loading. This enables faster recording of sales units, more accurate invoicing, and a reduction in surveying effort and process costs.

Additional information

Forestry operations can weigh firewood for end consumers directly during the loading process using a crane scale. This method offers an efficient alternative to individual log full or sample measurement. Weight recording supports traceable quantity determination, accelerates the provision of small sales units, and facilitates cost-effective processing in firewood sales.

Functions

Accessories

Price

€ 480.-

Note :

Net, ex works, excluding VAT

Article codes, product groups & Status information

Model article-code	HFD 600K-1
Model-Serie	HFD
Assortment	KERN
Product Type	Industrial scales
Product group	Crane scale
Product usage type	Main article
EAN code (Model)	4045761202788
Planned start date	2018-1HJ
Sales Clearance	yes
Customs tariff number	84238220
Article Status	active
PGS-ID	PGS-1-3-7
CE Label	yes
Country of Origin	CN

Technical data - Primary

Weighing capacity	150 kg; 300 kg; 600 kg
Readability	0.05 kg; 0.1 kg; 0.2 kg
Net weight	9 kg
Hanging scale (A)	194 mm
Hanging scale (B)	129 mm
Hanging scale (C)	160 mm
Hanging scale (D)	422 mm
Hanging scale (E)	384 mm
Hanging scale (F)	50,8 mm
Hanging scale (G)	50,8 mm

Technical data - Construction

Material casing	cast aluminium
Internal measurement frequency	10 Hz
TUEV (TÜV)	yes

Technical data - Display

Display height	30 mm
Backlight	LED white

Technical data - Power supply

Battery	1×12V,Type 23A
Mains adapter/adapter included	CH;EURO;UK
Charging time	12 h
Input Voltage	110 V - 240 V AC
Operating time (Backlight off)	70 h

Technical data - Measuring system

Calibration method	Adjusting with external weight
Linearity	± 0.1 kg; 0.2 kg; 0.4 kg
Readability	0.05 kg; 0.1 kg; 0.2 kg
Recommended adjusting weight	600 kg (M1)
Repeatability	0.05 kg; 0.1 kg; 0.2 kg
Resolution	3.000, 3.000, 3.000
Tare range	599,8 kg
Warm up time	10 min; 10 min; 10 min
Weighing units	kg

Technical data - Environmental conditions

Maximum humidity	80 %
Maximum operating temperature	40 °C
Minimum ambient temperature	-10 °C
Minimum humidity	0 %

Technical data - Packing & Shipping

Dimensions packaging (W×D×H)	725×278×270 mm
Gross weight	11 kg
Net weight	9 kg
Shipping method	Parcel service
UN number	3481
Packaging component - by weight - cardboard	660 g
Packaging component - by weight - styrofoam	450 g
Delivery time	1 d

Text data

Headline	Crane Scale KERN HFD 600K-1
Slogan	Robust, high-resolution crane scale
Description	With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety) Because of its stable construction and robust design, it is ideal for continuous use in industrial environment High mobility: thanks to rechargeable battery operation, compact, lightweight construction, it is suitable for the use in several locations (production, warehouse, dispatch department, etc.) Hold function: the weight display is "frozen" when the Hold button is pressed Tare: Resets the display to „0“ when there is a load on the scale. Now removed or added loads are directly displayed Radio remote control standard. Range up to 20 m. All functions can be selected (excl. ON/OFF). W×D×H 65×24×100 mm. Batteries included, 1×12V, 23A

Function elements

Remote control unit	yes
Formulation function level	Sum A
Summing function	yes
Standby function	yes
Tare Function	manual (single & multi)
Hold function	yes

Responsible Persons

Product manager

Felix Häusel

Prices & Discounts

List price	480.00 €
Warranty	24 mon

Optional Services

DAkkS Calibration

963-130H

HFD 600K-1 - Crane scale
