Plattformwaagen : IFC 60K10DM

Application Headline

Check weighing when filling organic potatoes

Application Description

For direct sale or shipping, organic potatoes are packed into 25 kg bags after harvest and weighed using calibrated scales. This ensures that the declared quantities are correct – a must for legally compliant sales and satisfied customers!

Additional information

Many organic farms rely on direct marketing – for example, through farm shops, weekly markets, or direct delivery from the farm. The filled potato sacks must have exactly the declared weight. A calibrated scale is essential for this, as it guarantees the correct fill volume and protects against complaints or legal issues. Especially in the organic sector, precise weight control is an important quality feature and builds trust among buyers.

Functions

Accessories

Price

€ 550.-

Note :

Net, ex works, excluding VAT

Article codes, product groups & Status information

Model article-code	IFC 60K10DM
Model-Serie	IFC
Assortment	KERN
Product Type	Industrial scales
Product group	Platform scales
Product usage type	Main article
EAN code (Model)	4045761475717
Predecessor Model	IFB 60K10DM
Planned start date	2024-1HJ
Sales Clearance	yes
Customs tariff number	84238220
Article Status	active
PGS-ID	PGS-1-3-2
CE Label	yes
Country of Origin	CN
Product line	EF20

Technical data - Primary

Weighing capacity	30 kg; 60 kg
Readability	0.01 kg; 0.02 kg
Minimum piece weight	100 g
Net weight	6.32 kg
Platform size	400×300 mm
Indicator cable length	3 m
Dimension weighing platform (W×D×H)	400×300×117 mm

Technical data - Construction

Dimensions display casing (W×D×H)	220×150×66.5 mm
Material weighing plate	stainless steel
Material Platform construction	steel, powder-coated
Bubble Level	yes
Revolving screw feet	yes
Weighing surface (d)	400×300 mm
Dimensions of weighing plate (W×D)	400×300 mm
Indicator cable length	3 m
Wall mount	yes
IP protection indicator	no IP protection
IP protection platform	no IP protection
IP protection load cell	IP65

Technical data - Display

Display height	48 mm
Backlight	yes

Technical data - Power supply

Battery	3V CR2032
Mains adapter/adapter included	CH;EURO;UK;US
Charging time	8 h
Input Voltage	100 V - 240 V, 50 / 60 Hz
Operating time (Backlight off)	48 h
Rechargeable battery	Rchrg. battery optional - intern

Technical data - Measuring system

Calibration method	Adjusting with external weight
Linearity	± 0.01 kg; 0.02 kg
Readability	0.01 kg; 0.02 kg
Recommended adjusting weight	60 kg (M1)
Repeatability	0.01 kg; 0.02 kg
Resolution	3.000, 3.000
Stabilisation time under laboratory conditions	3 s
Warm up time	10 min; 10 min
Weighing system	Strain gauge
Weighing units	%;ffa;g;kg;PCS
load cell connection	4-guide

Technical data - Environmental conditions

Maximum humidity	80 %
Maximum operating temperature	40 °C
Minimum ambient temperature	-10 °C
Minimum humidity	0 %

Technical data - Packing & Shipping

Dimensions packaging (W×D×H)	470×800×230 mm
Gross weight	9 kg
Net weight	7 kg
Shipping method	Parcel service
Packaging component - by weight - cardboard	1.1 kg
Packaging component - by weight - styrofoam	1.1 kg
Delivery time	1 d

Technical data - Counting data

Counting resolution	6000
Mininum piece weight at piece counting (Laboratory)	10 g
Minimum piece weight	10 g

Technical data - Verification

Verification value (e)	0.01 kg; 0.02 kg
Minimum load (Min)	0.2 kg; 0.4 kg
Verification by KERN possible	yes
Verification class	III

Text data

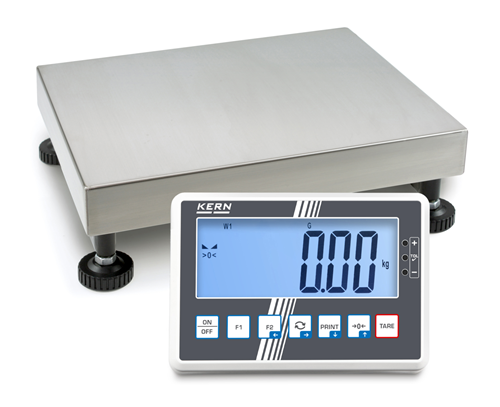

Headline	IoT-Line Platform Scale KERN IFC 60K10DM
Slogan	Robust industrial scales with up to three interfaces, with optional verification
Description	Tough industry standard suitable for use in harsh industrial applications Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol Industry 4.0: Data and control commands can be exchanged through the KERN Universal Port KUP) using one interface, which can be connected to the housing, or through three parallel interfaces using the KUP Extension box. The following interfaces are available as an option: RS-232, USB, Ethernet, WiFi, Bluetooth Each interface can be set up separately, e.g.: - Interface 1 (WiFi): Continuous sending to a PC for documentation of a process - Interface 2 (RS-232): Print stable weight - Interface 3 (analogue module): Controlling a device when the target weight is reached With Real Time Clock as standard: Enables you to log the weighing results with accurate time information. Even if the power supply is interrupted, the balance can continue to work with the correct time Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol Simplified battery replacement through easily-accessible housing. Particularly advantageous for models with optional verification, as the verification seal remains intact Platform: weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell with protection against dust and water splashes IP65 Benchtop stand incl. wall mount for display device as standard Protective working cover included with delivery

Function elements

Pre Tare	yes
Percent weighing	yes
Formulation function level	Sum A
Summing function	yes
Alibi Memory	optional internal memory
Animal Weighing	yes
Counting	yes
Tare Function	manual (multi)

Responsible Persons

Product manager

Thomas Buchholz

Prices & Discounts

List price	550.00 €
Warranty	36 mon

Optional Services

DAkkS Calibration	963-129
Verification	965-229

IFC 60K10DM - Plattformwaagen

Kontrollwiegen bei Abfüllen von Biokartoffeln
